Voron 0.2

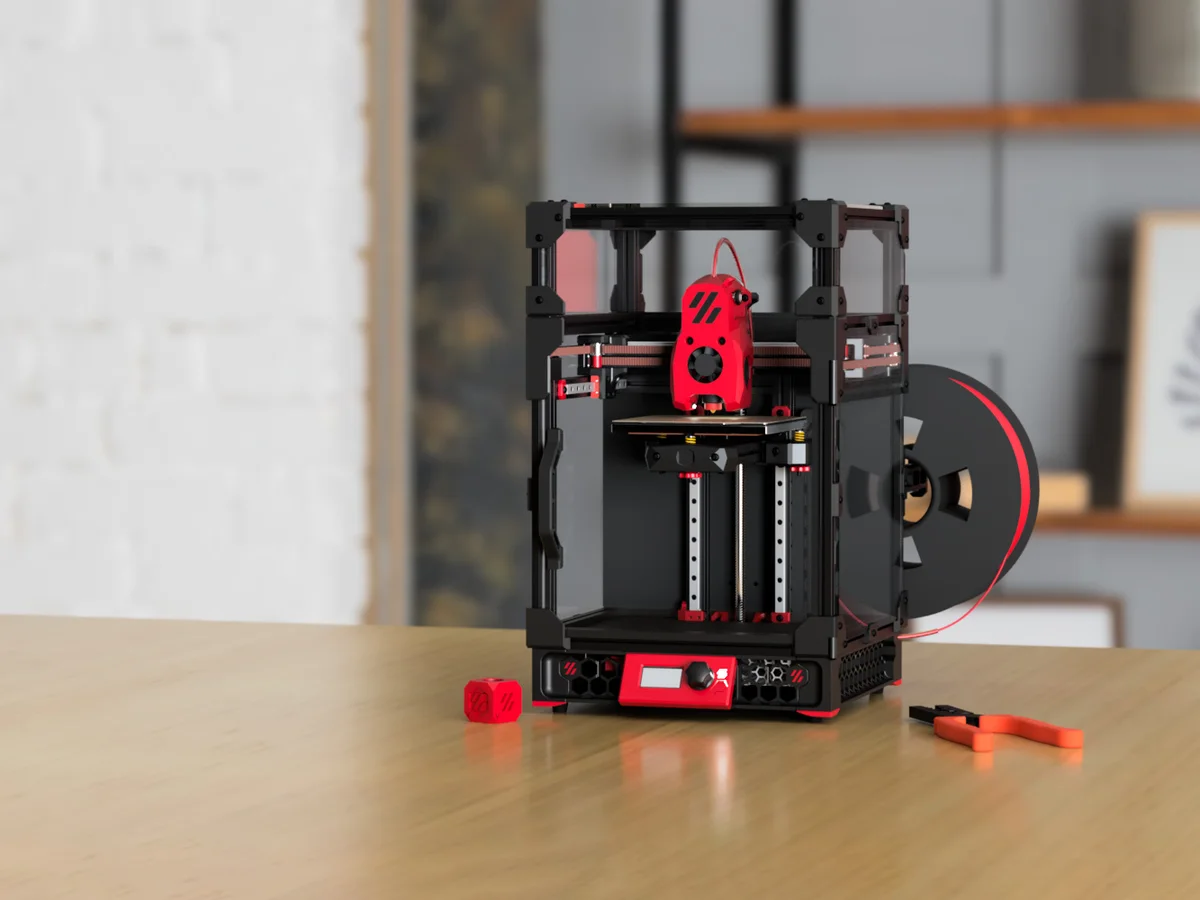

**Voron Zero** is a compact, fully-enclosed CoreXY 3D printer designed for high-speed, high-quality printing in a small footprint. The V0.2 revision is the official release maintained by [Voron Design](http://vorondesign.com/voron0.2). ## Highlights - 120�120�120 mm build volume - CoreXY motion system - Low-mass direct-drive extruder (Mini Stealthburner) - Fully enclosed chamber - 24V DC heated bed - Klipper firmware - Filament runout sensor - Sensorless homing ## What's in this program - Full STL set for the V0.2r1 revision (134 printed parts) - Pointer to the official assembly manual PDF - Klipper firmware configuration profile - BOM via the [Voron configurator](http://vorondesign.com/voron0.2) ## Build notes The Voron community provides an interactive [Printed Parts Guide](https://docs.google.com/spreadsheets/d/1MSgTiXazJwyfcTe7QqNIMWwQ_lfM8cOXmiMWPZ2HkEI/copy) and an active [Discord](https://discord.gg/voron) for build support. Expect a multi-weekend build for first-timers. Source: https://github.com/VoronDesign/Voron-0 (GPL-3.0)

Category: Sliders

Bill of Materials

> The official Voron Zero BOM lives in the **[Voron Configurator](http://vorondesign.com/voron0.2)** — it generates a custom CSV based on your sourcing choices (extrusion vendor, motor brand, hotend, etc). The summary below is what most builders actually buy. Most Voron 0.2 builders purchase a complete kit from LDO Motors, Formbot, or Fysetc rather than sourcing parts individually.

| Category | Item | Qty | Est. Cost (USD) | Notes |
|---|---|---|---|---|
| **Kit (recommended path)** | [LDO Voron 0.2 R1 Full Kit](https://www.amazon.com/s?k=LDO+Voron+0.2+kit) | 1 | $700–900 | Includes frame, motors, electronics, hotend, bed |
| | [Formbot Voron 0.2 Kit](https://www.amazon.com/s?k=Formbot+Voron+0.2) | 1 | $500–700 | Budget kit alternative |
| **Frame (à la carte)** | 2020 V-slot extrusions, ~120mm cuts | ~12 | $40–60 | Misumi, KJN, or Bosch |
| **Motion** | NEMA 14 stepper motors (LDO 0.36° pancake) | 2 | $40 | A and B (CoreXY) |
| | NEMA 14 Z motor | 1 | $20 | |
| | NEMA 17 pancake (extruder) | 1 | $20 | 20mm thick, 10-tooth |
| | MGN7H linear rails | 2 | $30 | X and Y |
| **Electronics** | [BTT Manta M5P](https://www.amazon.com/s?k=BTT+Manta+M5P) | 1 | $40–60 | Klipper-compatible |
| | Raspberry Pi or CB1/CB2 | 1 | $50 | Klipper host |
| | 24V DC PSU (Meanwell LRS-200-24) | 1 | $40 | |
| **Hotend / Extruder** | [Phaetus Dragonfly BMO / Revo Voron](https://www.amazon.com/s?k=Phaetus+Dragonfly+BMO) | 1 | $80 | |
| | BMG extruder gears | 1 set | $15 | |
| **Bed** | 120×120 24V silicone heater + aluminum plate | 1 | $35 | |
| **Hardware** | [Voron 0.2 fastener kit (DIN912/DIN7991)](https://www.amazon.com/s?k=Voron+0.2+screw+kit) | 1 | $40 | M2/M3/M5 mix; ~250pcs |
| **Filament runout** | Microswitch + ECAS04 collet | 1 | $5 | |
| **Panels** | 3mm acrylic/polycarbonate panel set | 1 | $40 | Cut to spec |

**Estimated all-in cost:** **$500–900 USD** depending on kit vs à la carte and hotend choice.
