About this program

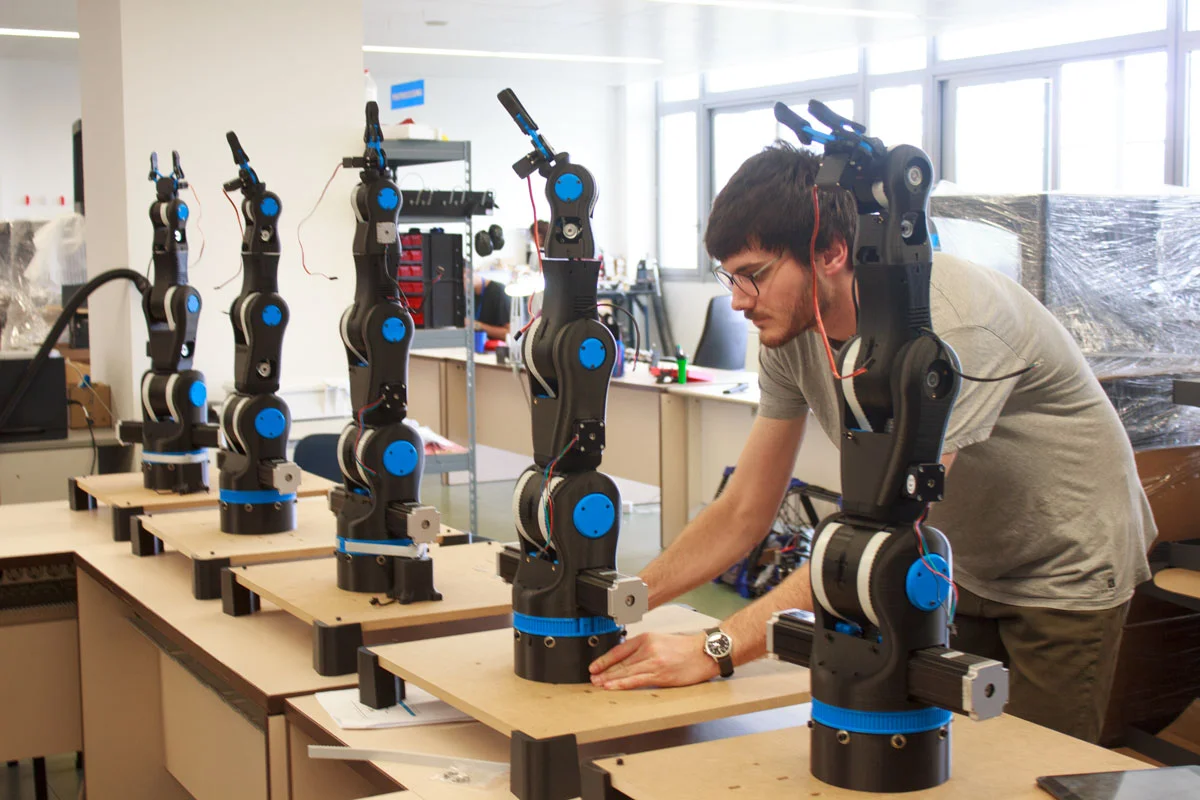

BCN3D Moveo
A fully 3D-printable 5-axis robotic arm with gripper, designed by BCN3D Technologies in collaboration with the Generalitat de Catalunya's Departament d'Ensenyament as an open-source educational platform.
Specifications
- DOF: 5 (base yaw, shoulder, elbow, wrist pitch, wrist roll) + gripper
- Motors: 5× NEMA 17 steppers for joints, 1× servo for gripper
- Controller: Arduino MEGA 2560 + RAMPS 1.4 + A4988 drivers
- Firmware: Modified Marlin (included in repo)
- Structure: Fully FDM-printed (PLA/ABS), 32 parts
- Skill level: Intermediate
- License: CC-BY-SA (open hardware)
What's in the source
STL files/— 32 printable parts split by articulation (base, J1–J4, cover, electronics box, end-effector)CAD files/— editable geometry for customizationFIRMWARE/Marlin_BCN3D_Moveo/— flashed to the Arduino MEGAUSER MANUAL/— full assembly guide (English/Spanish PDF)BOM/— complete parts list
Originally based on the Hackaday.io robot arm project by Andreas Hölldorfer.
Getting started
This orobot Program is an entry point — learn the control surface here, then build the physical arm from the BCN3D Moveo GitHub repo. The code below is a learning stub; wire it to your own firmware once assembled.
🖨 Print Files (32)

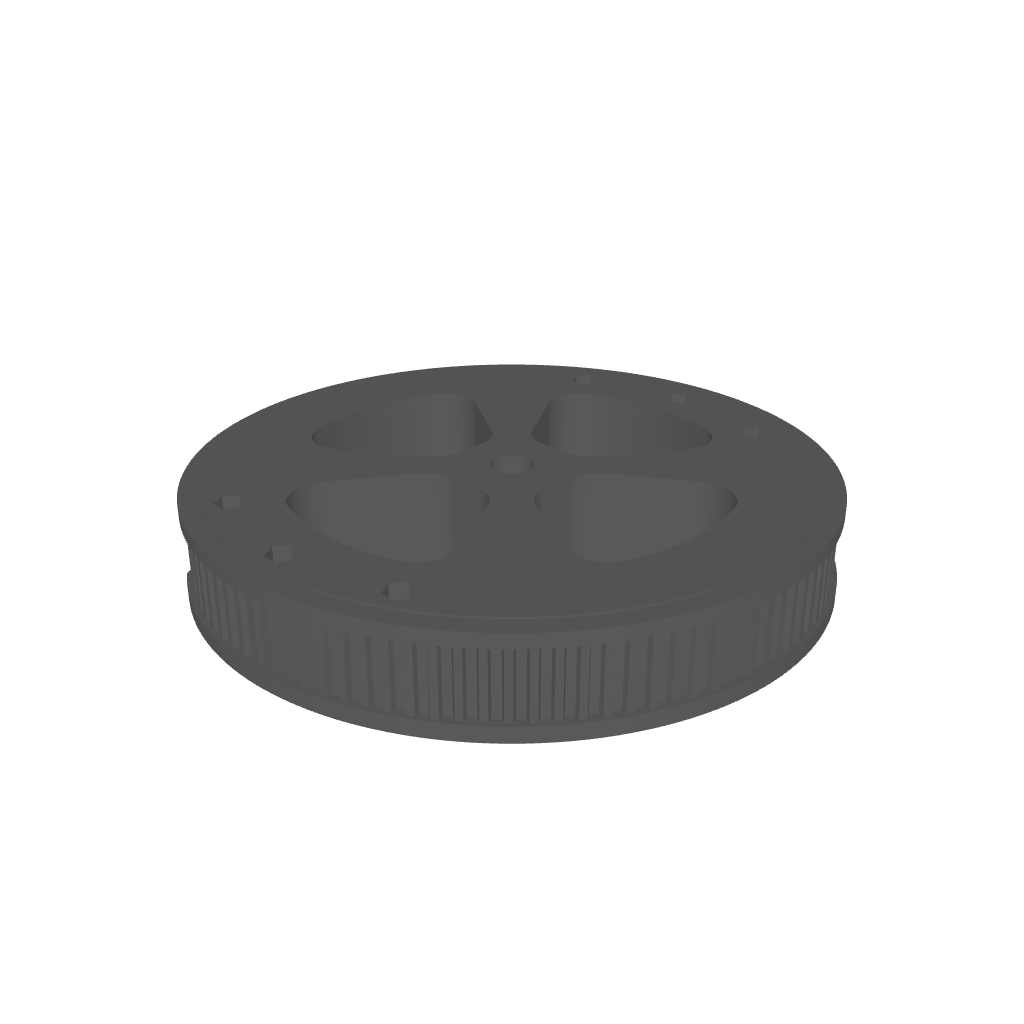

1M1.STL
STL

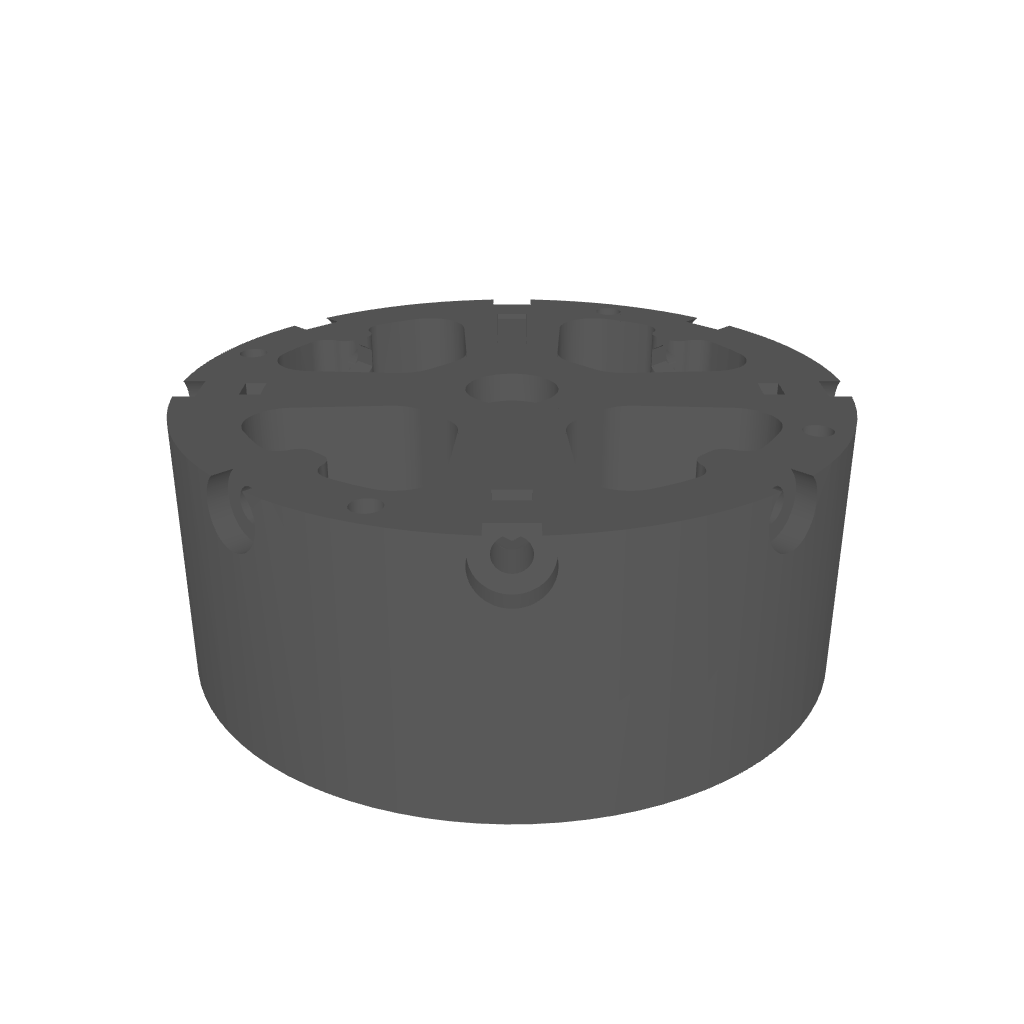

1M2.STL
STL

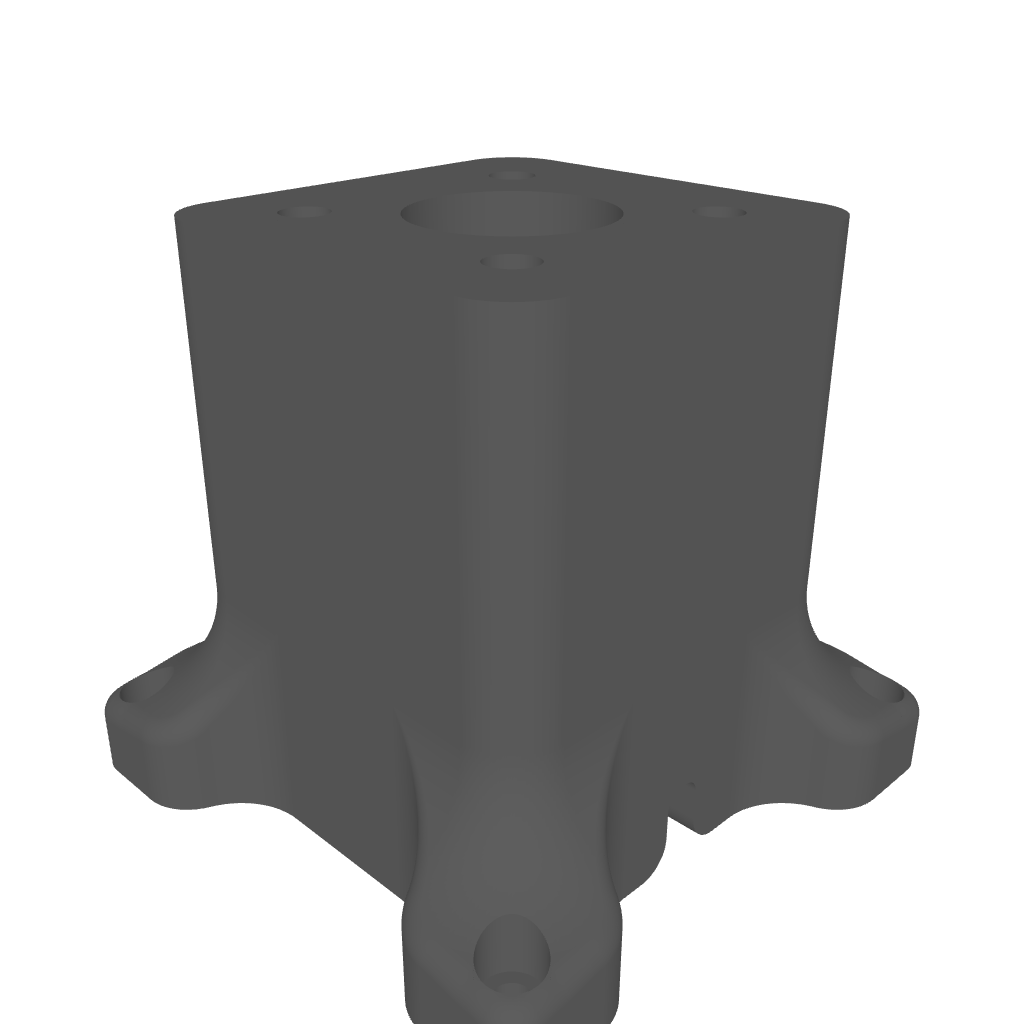

1M3.STL
STL

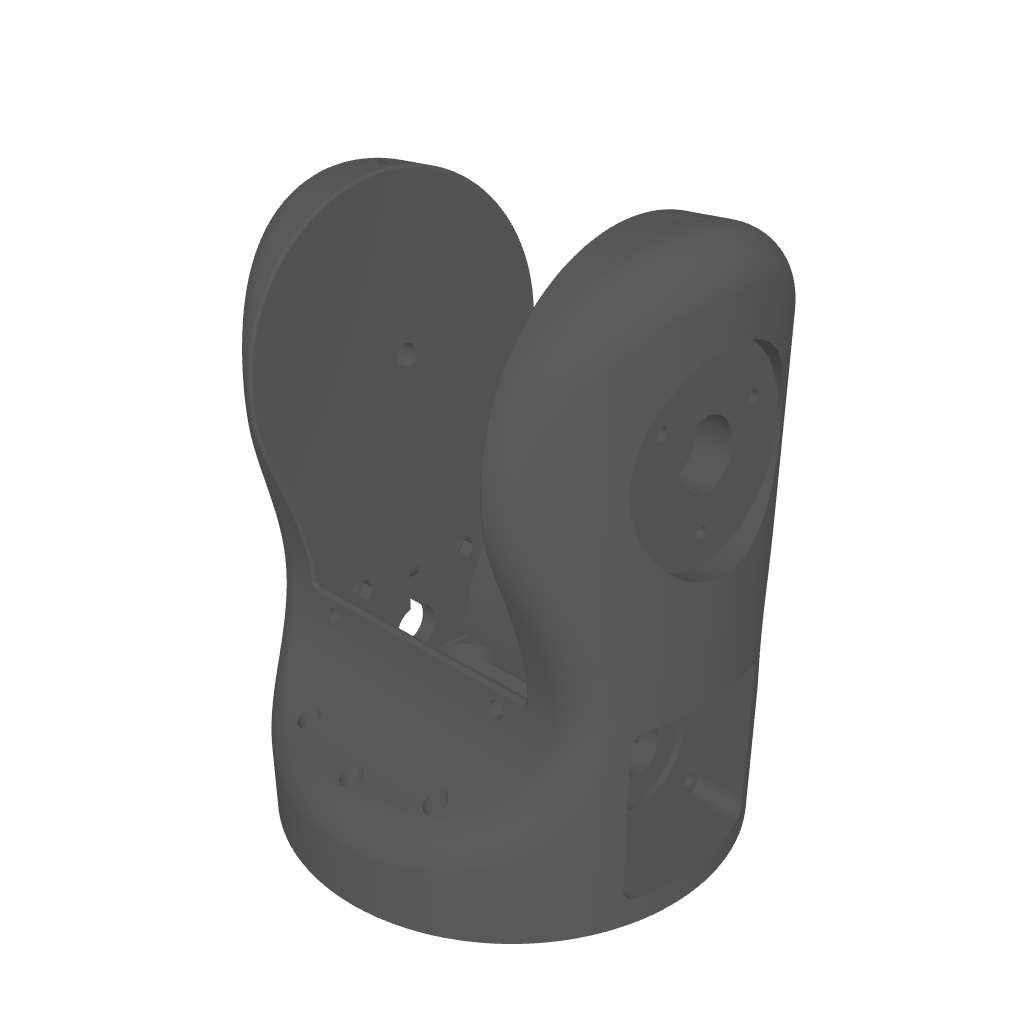

2M1.STL
STL

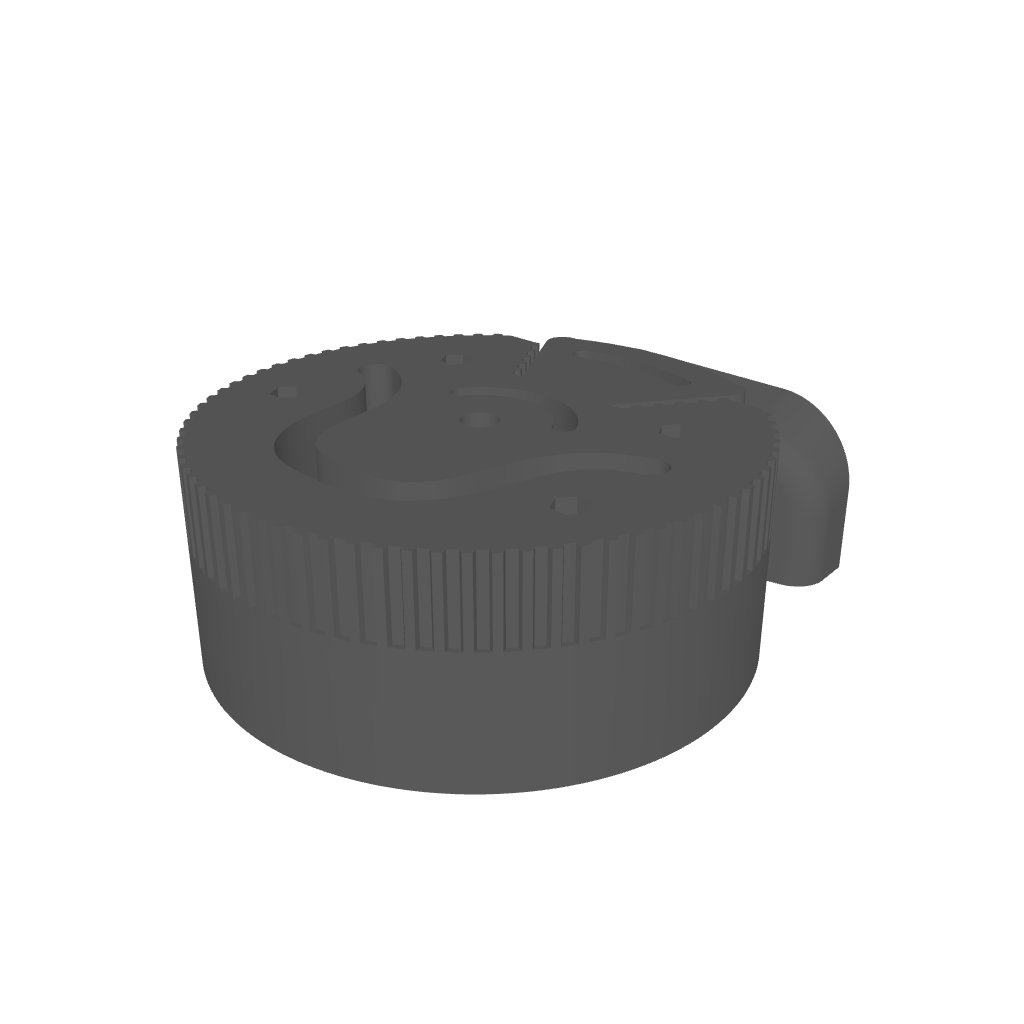

2M2H.STL
STL

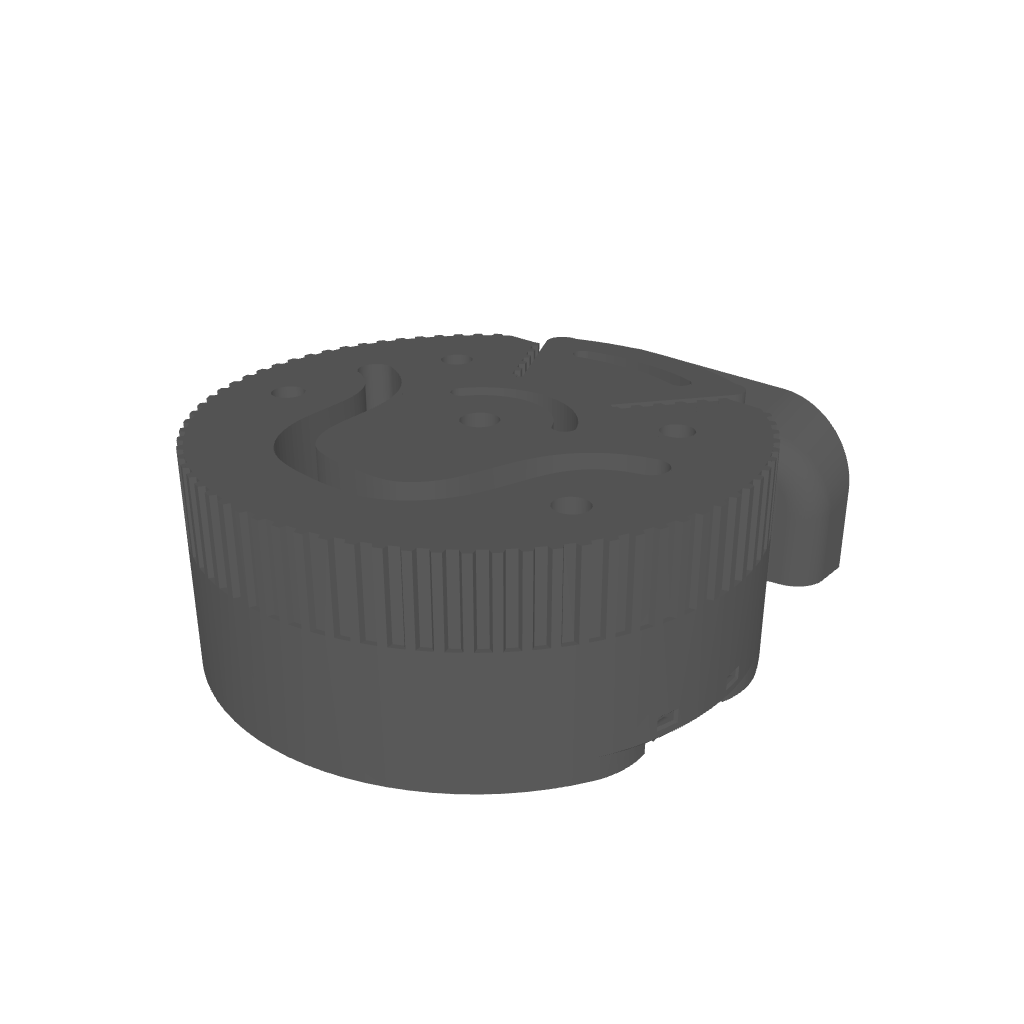

2M2M.STL
STL
Page 1 of 6
Required Hardware
~$15–$30 total
Slot 1
Arduino Mega (BYOD)
Arduino Mega 2560 or compatible microcontroller with external motor drivers for stepper-based robots.
$15–$30
Where to buy →✓ Links verified May 19, 2026
🛒 Add items 11–20Amazon limits 10 items per cart — click each button to add all parts.
$350–$550 estimated
| Part | Notes |
|---|---|
| Stepper motors | 5–6 per arm; NEMA 17 and NEMA 23 variants |
| Motor drivers | One per stepper (A4988 or DRV8825) |
| Arduino Mega 2560 | Main controller |
| RAMPS 1.4 shield | Stepper driver carrier board |
| GT2 timing belts + pulleys | For upper arm joints |
| Lead screws | For vertical axis |
| 3D printed structural parts | All 32 STL files in STL files/ |
| M3/M4/M5 bolts and nuts | Throughout frame |
| 12V or 24V power supply | Powers motors |
Arduino Mega 2560 Rev3 ↗RAMPS 1.4 Controller Shield ↗A4988 Stepper Driver (5-pack) ↗NEMA 17 Stepper Motor 1.8 deg 40Ncm ↗NEMA 23 Stepper Motor 1.8 deg ↗12V 30A Power Supply ↗MG996R Servo Motor (gripper) ↗Mechanical Endstop Limit Switch (5-pack) ↗GT2 Timing Belt + Pulleys Kit ↗608ZZ Skate Bearings (10-pack) ↗M3 / M4 / M5 Stainless Bolt Assortment Kit ↗Dupont Jumper Wire Set (M-F, M-M, F-F) ↗4-pin Stepper Motor Cable Extension Set ↗
