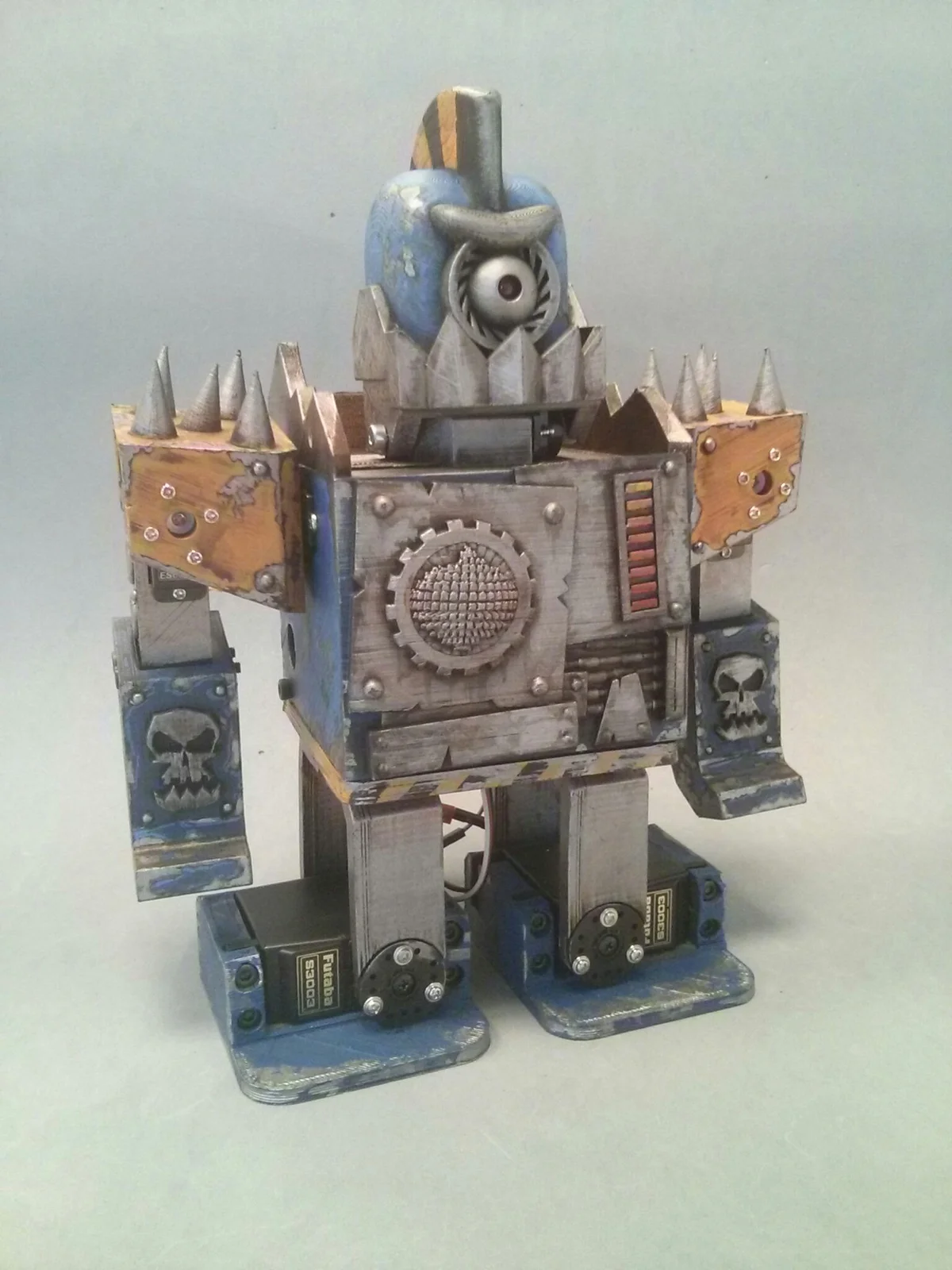

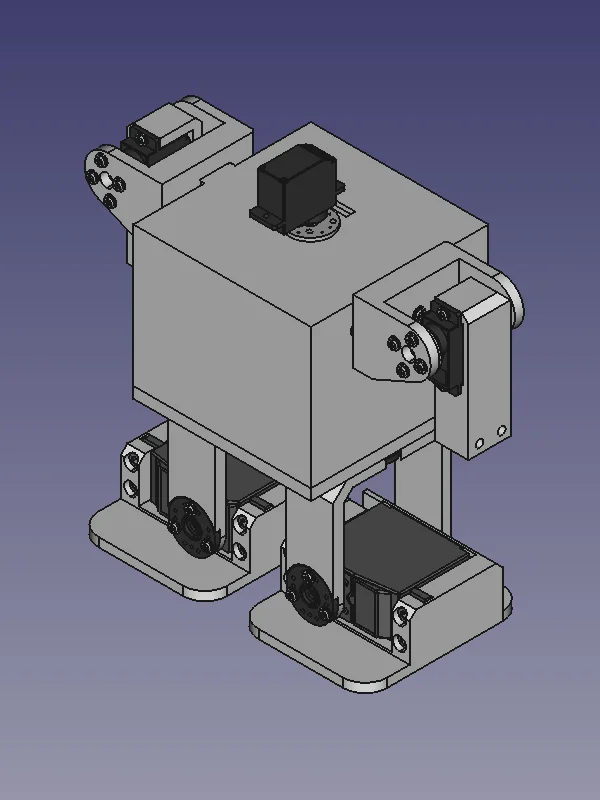

163 stars on GitHub. Zowi is the official open-source biped from bq (sponsored until 2016) — a compact 4-servo educational walking robot, descended from the Otto/BoB Thingiverse lineage (original concept by k120189, Thingiverse 43708). Designed entirely in FreeCAD so every part is editable and remixable. Licensed CC-BY-SA 4.0. Source: https://github.com/JavierIH/zowi Hardware: - 4 Futaba 3003 (or compatible) servos - BQ ZUM BT328 or Arduino-compatible board - 4xAAA battery holder - ~38 M3 bolts and 22 M3 nuts The repository ships the canonical body/chassis/leg/foot STLs plus a deep mods folder with remix variants: Forge, IronZowi, JIM, Kobuki, MicroRaider, Scopum, Zowarrior, Zowimanoid, Zowiquilator. Also includes Arduino code, schematics, and Spanish-language docs. Resources: - Original Thingiverse concept: http://www.thingiverse.com/thing:43708 - DIWO blog (Spanish): http://diwo.bq.com/zowi-introduccion-a-los-robots-bipedos/ License: CC-BY-SA 4.0.
Category: Humanoid

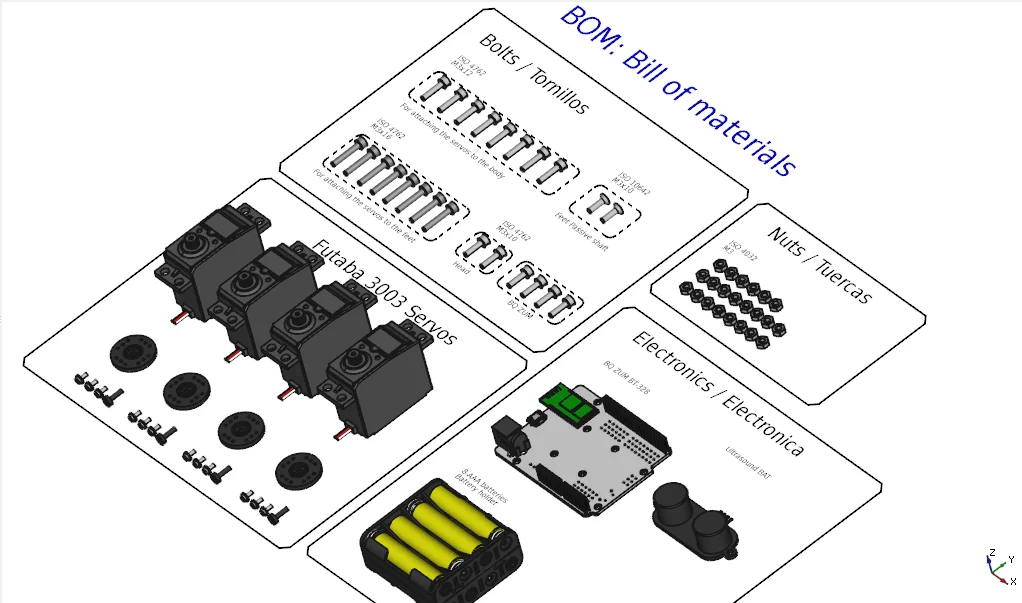

| Item | Qty | Unit Cost | Notes | |------|-----|-----------|-------| | BQ ZUM BT328 or Arduino Uno | 1 | $25.00 | Main controller (BT version has Bluetooth) | | Futaba S3003 servo (or compatible) | 4 | $10.00 | Hip and ankle joints | | 2xAAA battery holder | 4 | $2.00 | Power packs | | AAA alkaline batteries | 8 | $1.00 | Power source | | HC-SR04 ultrasonic sensor | 1 | $4.00 | (inferred) Standard on Zowi/Otto designs for obstacle detection | | Passive piezo buzzer | 1 | $2.00 | (inferred) Sound output, present on stock Zowi | | M3x10 bolts ISO 4762 | 6 | $0.10 | Frame fasteners | | M3x10 bolts ISO 10642 | 2 | $0.10 | Countersunk frame fasteners | | M3x12 bolts ISO 4762 | 8 | $0.10 | Frame fasteners | | M3x16 bolts ISO 4762 | 8 | $0.10 | Frame fasteners | | M3 nuts ISO 4032 | 22 | $0.05 | Frame fasteners | | Jumper wire kit (M-F) | 1 | $7.00 | (inferred) Connect servos and sensor | | HC-05 Bluetooth module | 1 | $8.00 | (inferred) For non-BT board variant |
