Spot Micro Quadruped
B✓ Confirmed fresh May 19, 2026
Sign up to InstallAbout this program

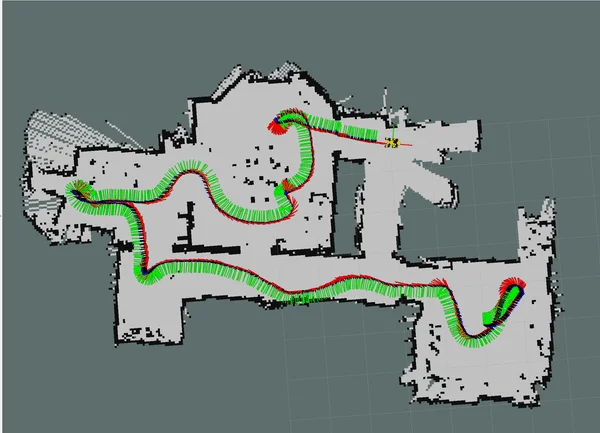

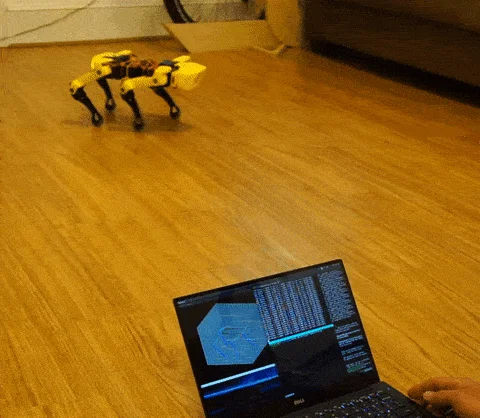

Spot Micro is a 4-legged open-source quadruped robot inspired by Boston Dynamics' Spot. Created by mike4192 in 2020, the project implements full motion control on a 3D-printed Spot Micro frame, including sit, stand, body angle, and walking gaits. Supporting libraries provide additional capabilities such as SLAM mapping using a body-mounted RPLidar.

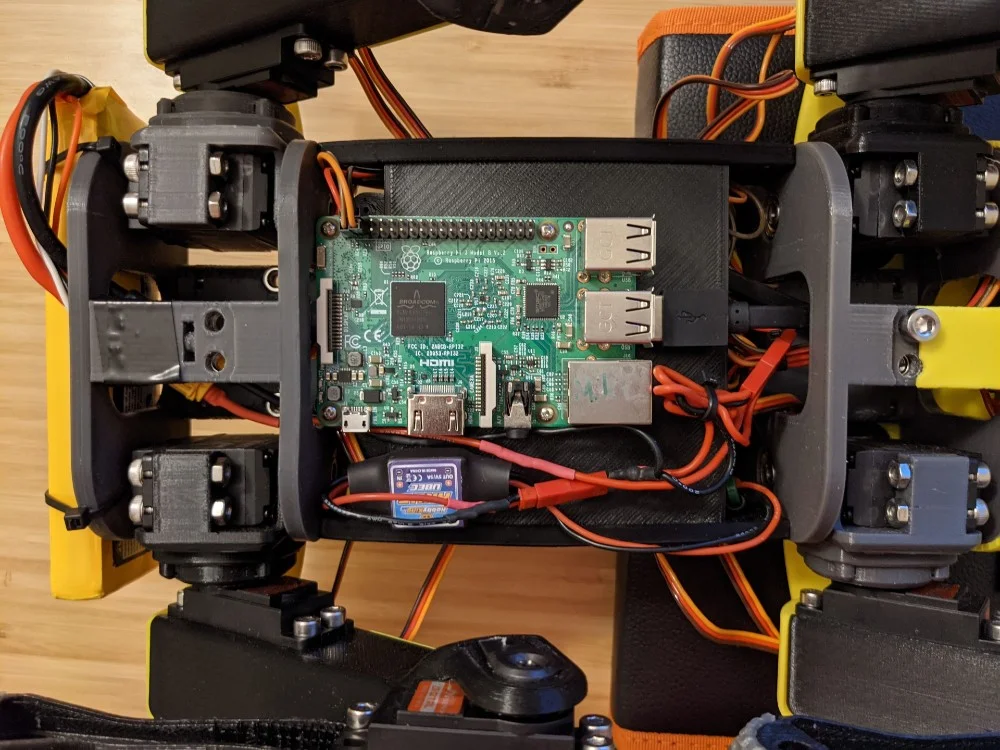

The robot uses a Raspberry Pi 3B running Ubuntu 16.04 with ROS Kinetic. Twelve PDI-HV5523MG servos (3 per leg) drive the legs through a PCA9685 i2c servo control board. The default 8-phase gait incorporates body movement to maintain balance and stability; an alternate trot gait achieves faster walking speeds.
The 3D-printed frame originates from KDY0523's Thingiverse "Spot Micro" design (thing:3445283). This repository contributes the ROS-based motion control software, kinematics implementation, custom shoulder mounts, lidar mount, and SLAM integration on top of that frame.
Hardware
| Component | Notes |
|---|---|
| Computer | Raspberry Pi 3B |
| Servo controller | PCA9685 (i2c) |
| Servos | 12 x PDI-HV5523MG (or HV5523MG / cls6336hv) |
| LCD panel | 16x2 i2c (optional) |
| Battery | 2s 4000 mAh LiPo |
| UBEC | HKU5 5V/5A regulator |
| Lidar | RPLidar A1 (for SLAM) |
| Frame | KDY0523 Spot Micro on Thingiverse |
Estimated cost: $300-450 USD. Build time: 2-4 weeks. Skill level: Intermediate to Advanced (requires familiarity with ROS, Linux, and 3D printing).
Software architecture
The project is structured as a ROS Catkin workspace. Key nodes:

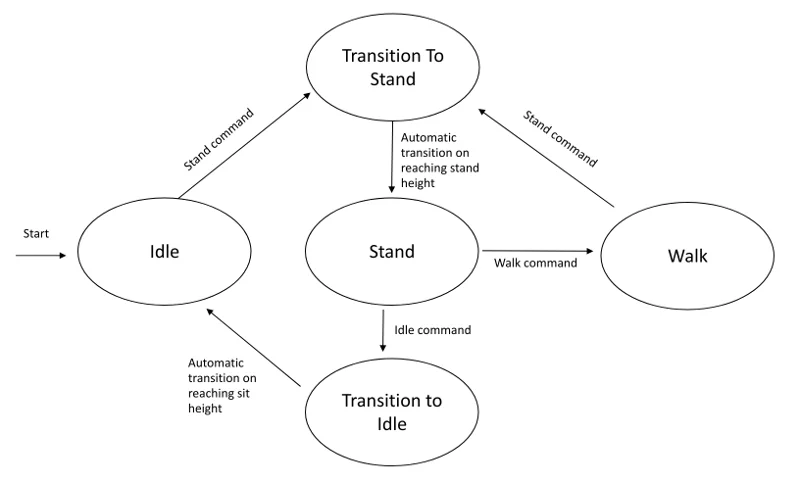

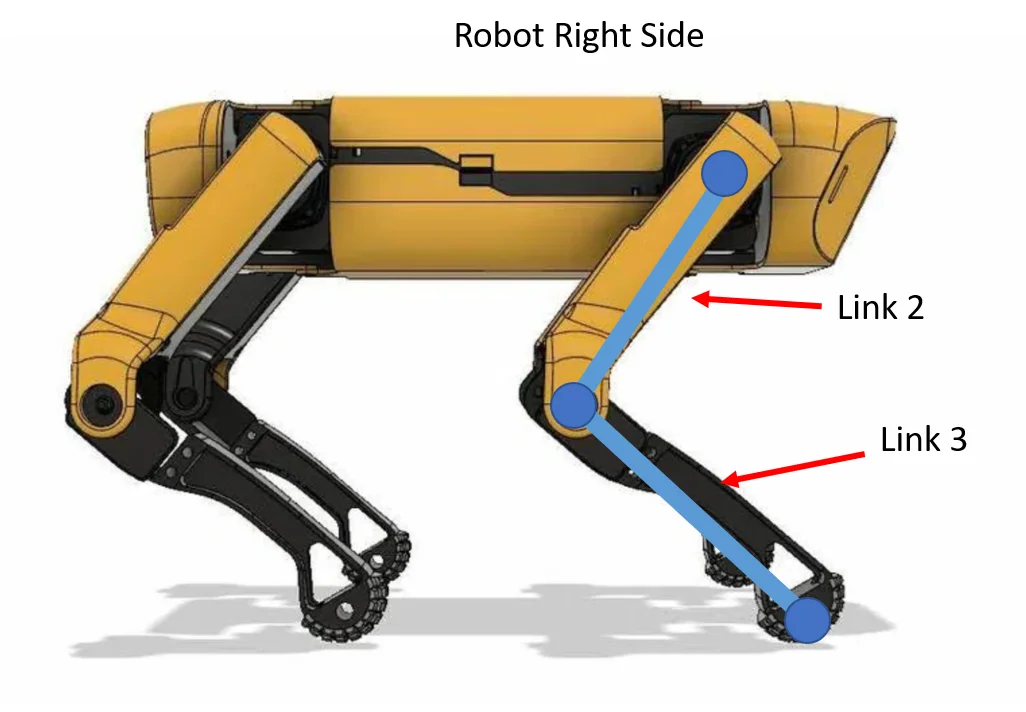

- spot_micro_motion_cmd — main C++ motion control node implementing kinematics, gaits, and state machine
- ros-i2cpwmboard — PCA9685 servo driver, controlled via i2c
- spot_micro_keyboard_command — Python keyboard teleop
- spot_micro_joy — joystick teleop
- servo_move_keyboard — manual servo calibration utility

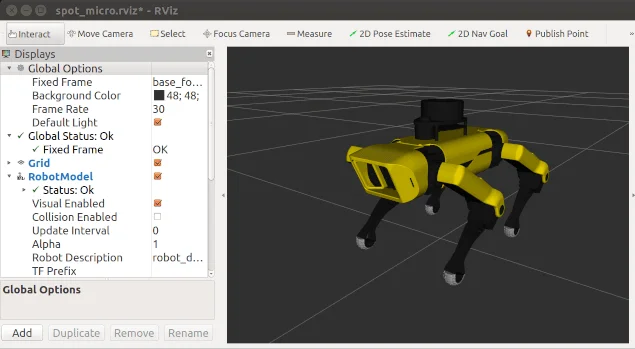

- spot_micro_rviz / spot_micro_plot — visualization
- lcd_monitor — LCD status display
Firmware status
This program is BYOD (bring-your-own-device). The motion control runs on a Raspberry Pi with ROS, not on the orobot platform's native firmware. The orobot.io program here serves as a learning entry point and command interface; full hardware control requires checking out the GitHub repository, building the catkin workspace, and flashing the configured Pi image. See the project README for setup instructions.
Attribution
Source: https://github.com/mike4192/spotMicro Author: mike4192 License: MIT Frame design: KDY0523 (Thingiverse thing:3445283, separate license)
