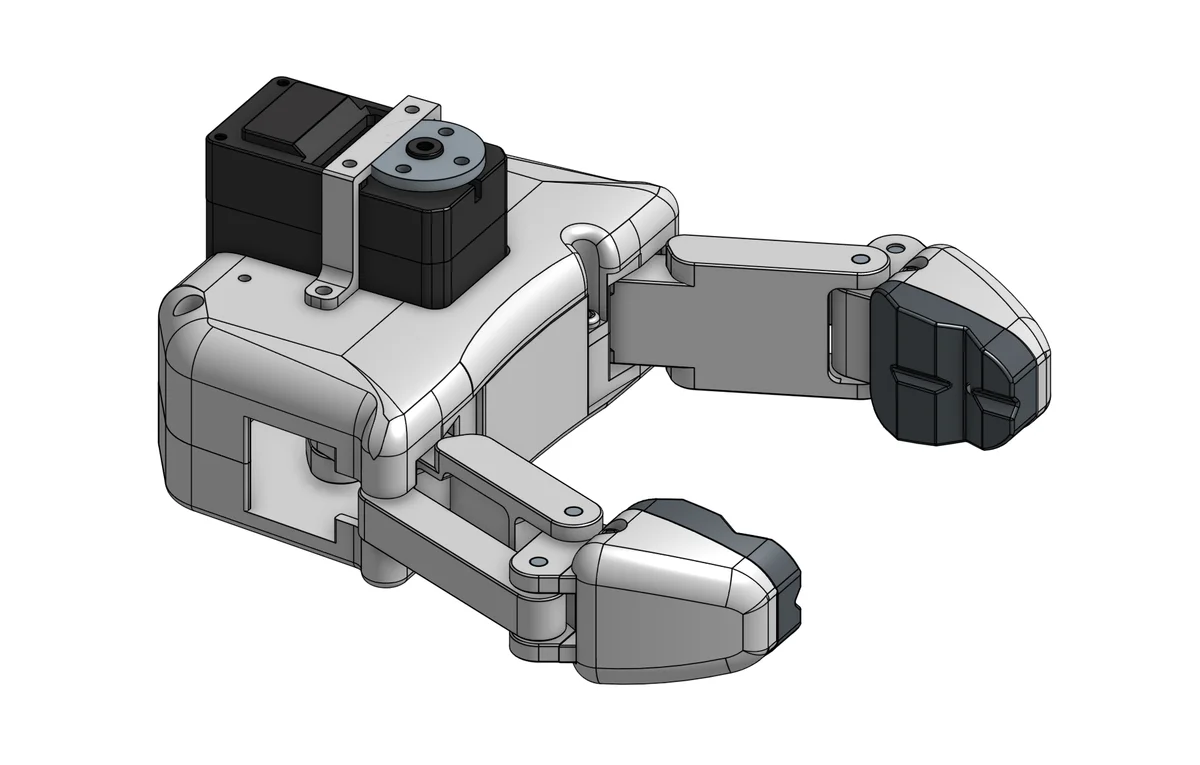

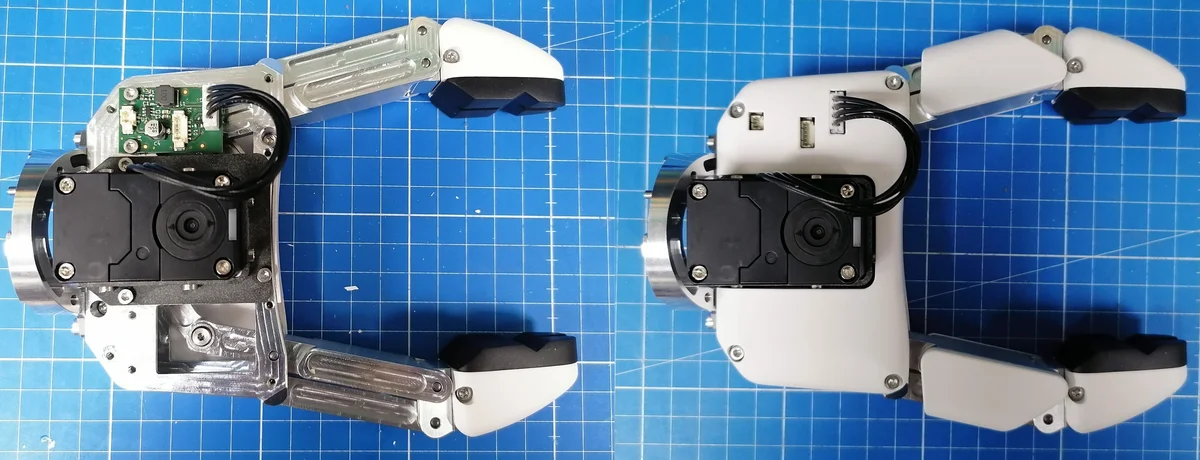

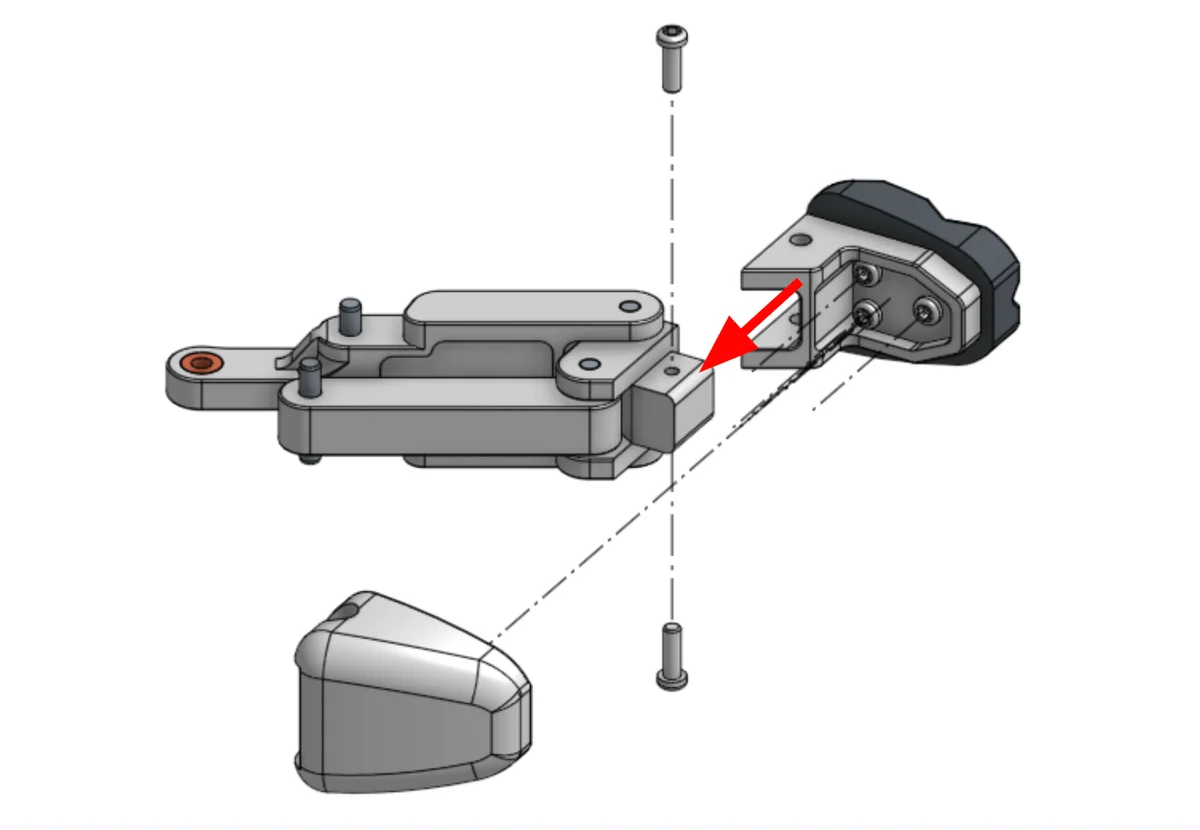

PincOpen is a low-cost (~25€) open-source parallel-finger gripper derived from Pollen Robotics' Reachy 2 "Pincette" gripper — bringing professional-grade gripper design to the DIY robotics community at 1/70th of the original cost. The gripper uses a **cam-driven parallel jaw mechanism**: a single STS3215 servo drives both fingers simultaneously through a cam plate, keeping both jaws parallel throughout the full range of motion. This is the same servo used in the SO-ARM100, so if you're already building that arm, you already have the hardware you need. **Key specs:** - **Cost:** ~25€ total (including motor already in SO-ARM100 BOM) - **Motor:** 1× Feetech STS3215 serial bus servo - **Mechanism:** Cam-driven parallel jaw — both fingers stay parallel through full stroke - **Mounting:** SO-ARM100 compatible interface plate included - **Tips:** Interchangeable! Standard rubber tips, camera mount, and custom tip support included - **Print time:** ~3–4 hours total (PLA or PETG recommended) **Interchangeable tips:** PincOpen features a modular tip system. The standard release includes flat rubber tips for general grasping, a camera mount for wrist-eye setups, and a blank tip template for custom applications. TPU tips can be printed directly onto the tip support for soft-grasp applications. **Torque limiting:** The cam geometry provides a natural soft stop — the motor position target is set just past full close, and the mechanical cam prevents over-torque from snapping the jaws. This is a clever mechanical substitute for the torque-limiting mode found on expensive Dynamixel servos. The gripper is fully compatible with the SO-ARM100 arm via the included Interface_ARM100 adapter plate, and all 14 structural components are 3D-printable. Hardware and design licensed under CC BY-SA 4.0. Original design by Pollen Robotics — https://github.com/pollen-robotics/PincOpen
Category: Robotic Hands
| Part | Qty | Notes | |------|-----|-------| | Feetech STS3215 Motor | 1 | Replaces expensive Dynamixel alternative | | 3D-printed parts | 1 set | All mechanical custom parts printable | | Removable tips (TPU) | 2 | Interchangeable for different applications |
